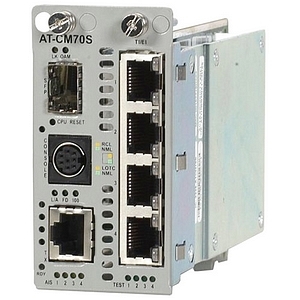

4 X T1/E1 & 10/100TX OVER 100FX SFP

Our Price:
$638.14 CAD
Special Order
Shipping Weight: 0.59 lbs
SKU #: (126933)
Mft. Part #: AT-CM70S
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
Customer Reviews

Specifications
Additional Information
  • Supports both Near and Far End TDM loopback
  • Inter-building and intra-building protection and electrical safety compliance of T1/E1 lines
  • Managed or unmanaged operation
  • Local console port for easy remote configuration
  • Dual width line card for Converteon series chassis
    		•
    Altitude    3048 m Operating
    3048 m Storage
    Brand Name    Allied Telesis
    Dimensions    13cm Height x 4.4cm Width x 7.3cm Depth
    Distance Support    1828.8 m
    2.5 km
    Expansion Slots    1 x SFP (mini-GBIC)
    Humidity    5% to 90% Non-condensing Relative Humidity Operating
    5% to 95% Non-condensing Relative Humidity Storage
    Interface Type    10/100Base-TX
    T1/E1
    Interfaces/Ports    1 x 10/100Base-TX
    4 x T1/E1
    Interfaces/Ports Details    1 x RJ-45 Connector 10/100Base-TX Auto MDI/MDI-X
    4 x RJ-48 Connector T1/E1
    1 x 8-pin Female Console
    Manufacturer    Allied Telesis, Inc
    Manufacturer Part Number    AT-CM70S
    Manufacturer Website Address    www.alliedtelesyn.com
    Marketing Information

    The AT-CM70S T1/E1 Media Converter line card is designed to increase the capacity of an existing point-to-point fiber network, by multiplexing up to 4 T1/E1 TDM channels and one Fast Ethernet channel over a single fiber interface. By the use of a modular fiber SFP (Mini-GBIC) uplink, installers can easily deploy the AT-CM70S over a wide range of fiber optics, including multi-mode, single-mode and bi-directional fiber at distances up to 40km.
    MTBF    670000 Hour
    Number of Ports/Channels    1
    4
    Product Model    AT-CM70S
    Product Name    T1/E1 Media Converter line card
    Product Type    Line Card
    Protocols    Ethernet
    Fast Ethernet
    Status Indicators
  • System LEDs
  • SFP Fiber Port LEDs
  • Copper Port LEDs
  • T1/E1 Ports LEDs
    		•
    Temperature    0 ?C to 40 ?C Operating
    -25 ?C to 70 ?C Storage
    Weight    0.54 kg
