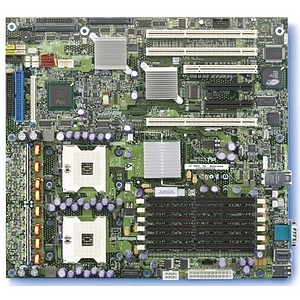

OPEN BOX BRANDON SVR BOARD SATA #858586

Our Price:
$462.59 CAD
Special Order
Shipping Weight: 3.82 lbs
SKU #: (146043)
Mft. Part #: SE7520BD2
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
HardwareWiki.org Info

Customer Reviews

Specifications
Additional Information

Benefits:

  • Processing power and scalability to meet the dynamic demands of general-purpose servers.
  • Compatibility with 64-bit-capable operating systems and applications; reduced power consumption for lower-cost operation.
  • Enterprise performance and reliability in a purpose-built server chipset.
  • Powerful and reliable memory subsystem with capacity to support diverse server tasks; two memory configurations for easy customization.
  • Reduction of data bottlenecks to provide the bandwidth necessary for I/O intensive applications in addition to flexibility and scalability.
  • High bandwidth with teaming and fail-over capability for demanding server environments.
  • One Intel 82541PI Gigabit Ethernet Controller and One Marvell Yukon-EC 88E8050 PCI Express Gigabit Ethernet Controller, supporting teaming and failover, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output.
  • Single-channel ATA 100 (integrated single connector) supporting two IDE devices
  • Dual-channel SATA 100 (two connectors on the server board) supporting integrated mirroring and striping (RAID 0 and 1)
  • One external DB9 serial port; one internal serial port (which can become Emergency Management Port if system-management card supports EMP)
  • Server Configuration Wizard for system setup of BIOS utilities; Save and Restore System Configuration Utility and initial Intel Server Management 8 configuration.

    • Fully Validated Operating Systems:

  • Microsoft Windows Server 2003 Enterprise Edition
  • Microsoft Windows 2000 Advanced Server
  • Red Hat Linux Enterprise 3.0
  • SUSE LINUX Enterprise Server 9
  • Novell NetWare 6.5.

    • Execute Disable Bit functionality:

  • This board supports processors (with Processor No. : 'J') which have Execute Disable Bit capability. Execute Disable Bit allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.


    		•
    Additional Ports    6 x Fan Header
    Back Panel Interfaces    2 x mini-DIN
    1 x HD-15 VGA
    3 x Type A USB 2.0 USB
    1 x DB-9 RS-232 Serial
    2 x RJ-45 Network
    BIOS    AMI - 4Mb Flash ROM, Multiboot BBS (BIOS Boot Specification), Plug n Play
    Brand Name    Intel
    Certifications & Standards

    Safety and EMC Regulatory Compliance (Class A):

  • AS/NZA 3548 Class A Emissions - (Australia/New Zealand)
  • UL 60950 - CSA60950 - (Canada)
  • EN55022 - Class A Emissions (CENELEC Europe), EN55024 Immunity (CENELEC Europe) - (Europe)
  • CISPR 22 - Class A Emissions - (International)
  • VCCI Class A Emissions - Verify compliance only - (Japan)
  • RRL MIC Notice No. 1997-41 (EMC) and 1997-42 (EMI) - (Korea)
  • GOST R 29216-91 Class A Emissions, GOST R 50628-95 Immunity - (Russia)
  • BSMI CNS13438 Class A Emissions - (Taiwan)
  • FCC/ICES-003 Verification to Class A Emissions - (United States )


    		•
    Chipset Manufacturer    Intel
    Chipset Model    E7520
    Dimensions    30.48cm Width x 33.02cm Depth
    Expansion Slots    1 x PCI Express x8
    1 x PCI Express x4
    3 x PCI-X
    1 x PCI
    Floppy Controller    Yes
    Front Panel Interfaces    1 x On/Off Switch
    1 x Reset Switch
    1 x NMI switch
    1 x System ID switch
    1 x System ID LED
    1 x System Fault LED
    1 x Chassis Intrusion Switch
    1 x Lockout
    1
    2 x USB Header
    Front Side Bus    800MHz
    Gigabit Ethernet    Yes
    Graphics Controller Manufacturer    ATi
    Graphics Controller Memory    8MB
    Graphics Controller Model    Rage-XL
    Hardware Monitoring
  • Hardware support for monitoring: Voltages, Temperature, Fans
  • Chassis intrusion detection

    		•
    Humidity    95 Non-operating Relative Humidity
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Jumpers
  • J2H1 for CMOS clear
  • J4H3 for Password clear
  • J4H1 for BIOS recovery

    		•
    Management
  • Wake on LAN
  • SMBIOS 2.3.1
  • ACPI 2.0
  • ECC/Parity support
  • National Semiconductor PC87431M Platform Instrumentation ASIC

    		•
    Manufacturer    Intel Corporation
    Manufacturer Part Number    SE7520BD2
    Manufacturer Website Address    www.intel.com
    Marketing Information

    The Intel Server Board SE7520BD2, supported by dual Intel Xeon processors and the Intel E7520 chipset, meets the needs for high-clock-speed CPUs, high-bandwidth I/O, fast-access memory, as well as ample and redundant storage options. Additionally, comprehensive management tools enable businesses and large workgroups to effectively run line-of-business applications, departmental databases, and file and messaging servers.
    Maximum Memory    24GB
    Memory Standard    DDR333/PC2700
    DDR266/PC2100
    Memory Technology    DDR SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    6
    Number of SATA Interfaces    2
    Package Contents
  • Intel Server Board SE7501BR2
  • Quick-Start User Guide
  • Cable kit
  • I/O shield
  • Board-configuration label
  • Intel Server Management 8 CD Pack containing:
    • Intel Server Deployment Toolkit with Intel Express Installer, Intel Server Maintenance and Reference Training (SMaRT) Tool Software, server product information, technical documentation, customer support information, drivers and utilities, and Web links
    • CD-ROM with Intel Server Manager 8 family of software
    Package Type    Retail
    Packaged Quantity    1
    Packing    Box
    Power Supply Support    EPS12V
    Processor Socket    Socket 604
    Processor Support    Xeon
    Processor Technology    Hyper-Threading Technology
    Product Name    SE7520BD2 Server Board
    Product Type    Server Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/150
    Standard Warranty    3 Year Limited
    Temperature    -40 ?C to 70 ?C Non-operating
    10 ?C to 35 ?C Operating
    Total Processor Support    2
    Voltage Requirements    12V DC
    5V DC Standby
    5V DC
    3.3V DC
    -5V DC
    -12V DC
