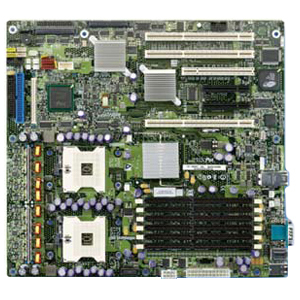

Server Board SE7520BD2-Mainboard-SSI EEB 3.5-E7520-Socket 604-UDMA100, SATA (RAI

Our Price:
$575.53 CAD
Special Order
Shipping Weight: 4.24 lbs
SKU #: (147231)
Mft. Part #: SE7520BD2SCSID2
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information

Chipset:

  • Intel E7520 chipset consists of:
    • Memory Controller Hub (MCH)
    • I/O Controller Hub (ICH5R)
    • Intel 6700PXH 64-bit Hub (PXH)

    Integrated Management Type:

  • Onboard Platform Instrumentation
  • Intel Management Module Support:

  • Professional Edition
  • Advanced Edition
  • Special Features:

  • IDE drive auto-configure
  • SM BIOS 2.3
  • ECC/Parity support
  • Multilingual support
  • Enabled for Intel One Boot Update for BIOS updates
  • Flashable
  • Integrated BIOS setup utility
  • Configuration Utilities:

  • Server Configuration Wizard for system setup of BIOS utilities; Save and Restore System Configuration Utility and initial Intel Server Management 8 configuration
  • Software Support:

  • Intel Server Management family of software; upgradeable via custom add-in card to support Intel Management Module
  • Reliability Features:

  • Corrects single-bit errors and detect double-bit errors (using ECC memory); supports x4 Intel Single Device Data Connection (SDDC), scrubbing, retry on uncorrectable errors, memory mirroring, memory sparing

  • Back Panel Interfaces    2 x mini-DIN
    1 x HD-15 VGA
    2 x Type A USB 2.0 USB
    1 x DB-9 RS-232 Serial
    2 x RJ-45 Network
    Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    E7520
    Dimensions    30.48cm Width x 33.02cm Depth
    Expansion Slots    1 x PCI Express x4
    1 x PCI Express x8
    3 x PCI-X
    1 x PCI
    Floppy Controller    Yes
    Front Panel Interfaces    1 x Power LED
    1 x HDD LED
    1 x Reset Switch
    1 x On/Off Switch
    1 x System Fault LED
    2 x USB Header
    1 x NMI switch
    Front Side Bus    800MHz
    Gigabit Ethernet    Yes
    Graphics Controller Manufacturer    ATi
    Graphics Controller Memory    8MB
    Graphics Controller Model    Rage-XL
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    Intel Corporation
    Manufacturer Part Number    SE7520BD2SCSID2
    Manufacturer Website Address    www.intel.com
    Marketing Information

    The Intel SE7520BD2SCSID2 Server Board, supported by dual Intel Xeon processors and the Intel E7520 chipset, meets the needs for high-clock-speed CPUs, high-bandwidth I/O, fast-access memory, as well as ample and redundant storage options. Additionally, comprehensive management tools enable businesses and large workgroups to effectively run line-of-business applications, departmental databases, and file and messaging servers.


    Maximum Memory    16GB
    Memory Standard    DDR2-400/PC2-3200
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    8
    Number of SATA Interfaces    2
    Number of SCSI Interfaces    2
    Processor Socket    Socket 604
    Processor Support    Xeon
    Processor Technology    Hyper-Threading Technology
    Product Model    SE7520BD2
    Product Name    SE7520BD2SCSID2 Server Board
    Product Type    Server Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/150
    SCSI Controller    Yes
    SCSI Standard    Ultra320 SCSI
    Total Processor Support    2

    Manufacturer's Warranty Contact Information

    Intel retail box processors and motherboards have a limited warranty of 3 Years. This warranty is provided by Intel.

    Support URL: www.intel.com
    Support Phone Number: 1-(800)-628-8686

    E-Mail Intel Technical Support:
    http://supportmail.intel.com/scripts-emf/welcome.aspx?id=

    Processor Technical Support
    1-916-377-7000
    07:00-17:00 PST  Monday-Friday
