Print server - USB / parallel - EN, Fast EN, EtherTalk, IPDS - 10Base-T, 100Base

Our Price:
$659.48 CAD
Special Order
Shipping Weight: 1.45 lbs
SKU #: (154256)
Mft. Part #: 0193-004
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Brand Name    Axis
Certifications & Standards    IEEE:

  • IEEE 802.2
  • IEEE 802.3
  • Approvals:

    EMC:

  • EN 55022/1998
  • EN 55024:1998
  • EN 61000-3-2
  • EN 61000-3-3
  • VCCI Class B
  • CTICK AS/NZS 3548
  • Compliance to FCC part 15 Subpart B, Class B
  • Safety:

  • EN 60950

  • Compatibility    Supported Printers:

  • Printers and Digital Copiers:

    • Brother
    • Canon
    • Epson
    • HP
    • IBM
    • Kyocera,
    • Lexmark
    • Minolta
    • NEC
    • Oce
    • OKI
    • Ricoh
    • Sharp
    • Star
    • TEC
    • Toshiba
    • Zebra
    • Xerox etc

    IBM capabilities:

  • IBM Mainframe (zSeries):
    • OS: IBM S/370, S/390, 30xx, 43xx, 47xx, 937x,81xx
    • TCP/IP based protocols: TN3270E, PPR/PPD,LPR/LPD and RawTCP
    • SNA support: LU1 and LU3 (node type 2.0) for IBM 3174 Control unit emulation
    • Data streams: IPDS, SCS, 3270DS as well as PostScript, PCL and ASCII
    • Emulated printers: 4332, 4028, 3812 model 2,3816 model 01S and 01D, 4224, 4230, 3287,3268, 4214 and 3262

  • IBM AS/400 (iSeries):
    • OS: IBM OS/400
    • TCP/IP based protocols: TN5250E, PPR/PPD,LPR/LPD and RawTCP.
    • SNA support: LU6.2 (node type 2.1) for IBM 5494 Control unit emulation
    • Data streams: IPDS, SCS as well as PostScript,PCL and ASCII
    • Emulated printers: 4332, 4028, 3812, 3816,4214-2, 5224, 5225, 5256, 4230, 5x27-2 KS,5x27-3 KSSM, 5x27-3, 5x27-5

    Supported Systems:

  • PC:
    • Windows 95
    • Windows 98
    • Windows Me
    • Windows NT
    • Windows 2000
    • Windows XP
    • Windows 2003

  • Novell NetWare:
    • Novell NetWare 3.X
    • Novell NetWare 4.X
    • Novell NetWare 5.X
    • Novell NetWare 6.X. Supports bindery and NDS mode.Supports user messages and printer status. NDPS supported over IP and IPX. Support for iPrint using both LPR and IPP protocols. PSERVER (IP/IPX), RPRINTER/NPRINTER supported

  • Apple MacOS 7, 8, 9, MacOS X version 10.X
  • All Unix systems supporting TCP/IP (Linux, BSD, System V, Solaris, HP-UX, IBM AIX, Silicon Graphics IRIX, etc.)
  • Other systems supporting TCP/IP:IBM (MVS,VM, VSE, OS/400), DEC, VMS
  • Microsoft LAN Manager
  • IBM LAN Server
  • LANtastic
  • Supported Web browsers:

  • Any standard web browser (Netscape 4.x or higher)
  • MS Internet Explorer 4.x or higher

  • Connectivity Media    Category 5 STP 10/100Base-TX
    Category 6 STP 10/100Base-TX
    Data Transfer Rate    10Mbps Ethernet Full-duplex
    100Mbps Fast Ethernet Full-duplex
    10Mbps
    100Mbps
    Dimensions    2.79cm Height x 6.1cm Width x 11.68cm Depth
    Form Factor    External
    Humidity    10 to 90% Non-condensing
    Input Current    2000 mA
    Input Voltage    5.1 V DC
    Interface Type    10/100Base-TX
    Interfaces/Ports    1 x RJ-45 10/100Base-TX Network
    1 x Type A USB Printer
    1 x 36-pin Centronics Parallel Printer
    Management

  • AXIS ThinWizard for installation, configuration,monitoring and firmware upgrading of multiple units
  • Internal web pages for installation,configuration, monitoring and firmware upgrading
  • SNMP-MIB II compliant (RFC 1213), Axis private enterprise MIB included
  • Netware: full PCONSOLE, NWAdmin,ConsoleOne and iPrint-iManager support

  • Manufacturer    Axis Communications
    Manufacturer Part Number    0193-004
    Manufacturer Website Address    www.axis.com
    Marketing Information

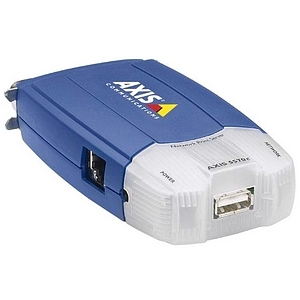

    The AXIS 5570e, with built-in IBM protocol converters, is equipped with one USB and one parallel port, which enable printing to two printers simultaneously. The AXIS 5570e is the first multi-session USB print server for the IBM environment.


    Memory    8MB RAM
    Memory Details    8MB RAM Installed
    2MB Flash Memory Installed
    Package Contents

  • One AXIS 5570e Print Servers
  • CD with software for installation
  • Power supply
  • USB cable
  • Mounting clip

  • Packaged Quantity    1
    Power Consumption    5.6 W Maximum
    Processor    AXIS Etrax 100LX 100MHz 32-bit RISC
    Product Name    5570e Printer Server
    Product Type    Print Server
    Protocols    TCP/IP
    DECnet
    DHCP
    BootP
    RARP
    DDNS
    Telnet
    IPP
    SLP
    ICMP
    IGMP
    IPX/SPX
    SAP
    NCP
    NDPS
    NLSP
    LIP
    RIP
    EtherTalk
    AARP
    ATP
    DDP
    NBP
    PAP
    RTMP
    Zip
    NetBEUI
    TFTP
    FTP
    SSL
    TLS
    DNS
    Shipping Dimensions    10.39cm Height x 24.89cm Width x 19.05cm Depth
    Shipping Weight    0.75 kg
    Standard Warranty    1 Year Limited
    Status Indicators

  • 2 LED indicators: Power and Network
  • Test button for information printouts

  • Temperature    5 ?C to 40 ?C
    Weight    0.08 kg
