SINGLE-MODE70KM 2 PORT SWITCH W/ EML

Our Price:
$1,958.40 CAD
Special Order
Shipping Weight: 1.11 lbs
SKU #: (164895)
Mft. Part #: AT-FS232/3-10
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
Customer Reviews

Specifications
Additional Information

  • AC Power supply, US power cord
  • Smart Missing Link (SML)
  • Supports 1532 bytes frame
  • 8k MAC address tables
  • Transparent to 802.1Q packets
  • Store-and-forward switching mode

    • Forwarding/filtering rate:

  • 148,880pps for 100Mbps
  • 4,880pps for 10Mbps
  • Latency 14.3?sec (64 byte packet, 100Mbps full-duplex)


    		•
    Altitude    0 m to 3048 m Operating
    Brand Name    Allied Telesis
    Certifications & Standards
  • EMC: FCC Class A
  • Safety: UL-Cul,CSA/CSA, NRTL,TUV,CE compliant
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1Q

    		•
    Connectivity    UTP
    Connectivity Media    10/100Base-TX Twisted Pair
    100Base-FX Single-mode Fiber
    Distance Support    70km
    Form Factor    Rack-mountable
    External
    Frequency    50 Hz or 60 Hz
    Humidity    5 to 95% Non-condensing Relative Humidity
    Input Voltage    100 V AC to 120 V AC
    220 V AC to 240 V AC
    12 V DC 5%
    Interfaces/Ports    1 x RJ-45
    1 x SC
    Management
  • VLAN support

    		•
    Manufacturer    Allied Telesis, Inc
    Manufacturer Part Number    AT-FS232/3-10
    Manufacturer Website Address    www.alliedtelesyn.com
    Marketing Information

    When upgrading your traditional 10Mbps Ethernet network or extending your 100Mbps Fast Ethernet network, switches are required and the AT-FS232 provides an ideal solution. The AT-FS232 is designed to extend the distance of your network by converting Fast Ethernet data between twisted pair cabling and single-mode fiber optic cabling.The ATFS232 features a 100FX fiber port and a 10/100TX twisted pair port.The fiber optic port has an SC connector and an operating distance of 70 kilometers .The twisted pair port has an RJ-45 connector with a maximum operating distance of 100 meters (328 feet).
    Maximum Distance Support    70km
    Network Technology    10/100Base-TX
    100Base-FX
    Number of Ports    2
    Power Consumption    6 W

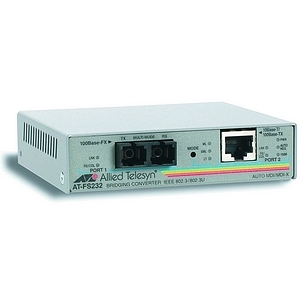

    Product Name    AT-FS232 Fast Ethernet Media Converting Switch
    Product Type    Media Converter
    Status Indicators

    System LEDs:

  • Power

    • Per Fiber Port:

  • Link ,Duplex, Collision

    • Per Copper Port:

  • Link, Speed, Auto, FD/Collision

    		•
    Temperature    0 ?C to 40 ?C Operating
    -20 ?C to 80 ?C Storage
    Weight    0.32kg
