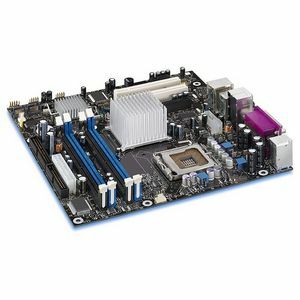

P4 1066MHz DDR2-533 CULVERCITY LAN865898

Our Price:
$191.31 CAD
Special Order
Shipping Weight: 2.75 lbs
SKU #: (167500)
Mft. Part #: BLKD925XECV2LK
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
HardwareWiki.org Info

Customer Reviews

Specifications
Additional Information

System Memory:

  • 3-3-3 memory timing with 1.9 V DIMMs
  • Double-sided DIMMS with x16 organization are not supported.
  • Minimum total system memory: 128 MB
  • Serial Presence Detect

    • Intel 925XE Chipset:

  • Intel 82925XE Memory Controller Hub (MCH) with Direct Media Interface (DMI) interconnect
  • Intel 82801FR I/O Controller Hub (ICH6-R) with DMI interconnect

    • Audio Subsystem:

  • Intel High Definition Audio subsystem based on the Realtek ALC880 audio codec
  • Advanced jack sense (front and rear panel) that enables the audio codec to recognize the device that is connected to an audio port. All jacks are capable of retasking according to user's definition, or can be automatically switched depending on the recognized device type.
  • Stereo input and output for all jacks
  • A signal-to-noise (S/N) ratio of 90 dB

    • LAN Subsystem:

  • x1 PCI Express link
  • IEEE 802.1p and 802.1q support
  • 10/100/1000 IEEE 802.3 compliant
  • Compliant to 802.3x flow control support
  • Jumbo frame support
  • TCP, IP, UDP checksum offload
  • Automatic MDI/MDIX crossover
  • Full device driver compatibility
  • Configuration EEPROMs that contain the MAC address and ASF 2.0 support
  • PCI Express Active State Power Management Support (L0s)

    • Execute Disable Bit functionality:

  • This board supports processors (with Processor No. : 'J') which have Execute Disable Bit capability. Execute Disable Bit allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage or worm propagation.


    		•
    Additional Ports    3 x Fan Header
    1 x Chassis Intrusion Header
    Audio Channels    7.1
    Back Panel Interfaces    2 x mini-DIN
    4 x Type A USB 2.0 USB
    1 x DB-9 RS-232C Serial
    2 x S/PDIF Out
    1 x DB-25 IEEE 1284 Parallel
    1 x RJ-45 Network
    1 x Mini-phone Microphone
    1 x IEEE 1394a FireWire
    3 x Mini-phone Audio Line Out
    1 x Mini-phone Audio Line In
    BIOS    Intel/AMI - Plug and Play - Resident in the 8 Mbit FWH
    Brand Name    Intel
    Certifications & Standards

    Safety Regulations:

  • UL 60950-1:2003/ CSA C22.2 No. 60950-1-03 (USA and Canada)
  • EN 60950-1:2002 (European Union)
  • IEC 60950-1:2001, First Edition (International)

    • EMC Regulations:

  • FCC (Class B) (USA)
  • ICES-003 (Class B) (Canada)
  • EN55022: 1998 (Class B) (European Union)
  • EN55024: 1998 (European Union)
  • AS/NZS 3548 (Class B) (Australia and New Zealand)
  • CISPR 22, 3rd Edition (Class B) (International)
  • CISPR 24: 1997 (International)
  • VCCI (Class B) (Japan)


    		•
    Chipset Manufacturer    Intel
    Chipset Model    925XE
    Dimensions    30.48cm Width x 24.38cm Depth
    Expansion Slots    1 x PCI Express x16
    4 x PCI
    2 x PCI Express x1
    Floppy Controller    Yes
    Front Panel Interfaces    1 x On/Off Switch
    1 x HDD LED
    1 x Power LED
    1 x Reset Switch
    2 x USB Header
    2 x FireWire Header
    1 x Audio Header
    Front Side Bus    533MHz
    800MHz
    1066MHz
    Gigabit Ethernet    Yes
    Hardware Monitoring
  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control
  • Chassis intrusion detection

    		•
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Management
  • Wired for Management (WfM)
  • Advanced Configuration and Power Interface (ACPI)
  • Wake on PCI, RS-232C, front panel, PS/2 devices, and USB ports
  • Wake on LAN

    		•
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BLKD925XECV2LK
    Manufacturer Website Address    www.intel.com
    Marketing Information

    Intel Desktop Board D925XECV2 supports Intel Pentium 4 processors (LGA775) and features PCI Express x16, DDR2 memory, Intel Matrix Storage Technology, Gigabit LAN, and Intel High Definition Audio for your extreme performance needs.
    Maximum Memory    4GB
    Memory Standard    DDR2-533/PC2-4200
    DDR2-400/PC2-3200
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    4
    Package Contents
  • 10 x D925XECV2 Desktop Board
  • 10 x Back Panel Audio Jack Cover
  • 10 x Cable, Flat ATA 66/100 IDE
  • 10 x Cable, Flat Floppy
  • 20 x Cable, Serial ATA
  • 10 x Cable, Serial ATA Power
  • 10 x Configuration Label
  • 10 x Diskette, Serial ATA ICH5 RAID Driver
  • 10 x I/O Shield
  • 1 x Quick Reference Guide
  • 10 x CD, Express Installer:
    • Intel Audio Studio (with Dolby Digital Live and Sonic Focus)
    • Intel Desktop Utilities*
    • Norton Internet Security
    • NTI CD-Maker
    • Musicmatch Jukebox
    • GameSpy Arcade
    • InterVideo Home Theater Silver
    • InterVideo WinDVD Creator Silver
    • Farstone RestoreIT! Lite

    * Intel Desktop Utilities includes: Hardware monitoring, Diskeeper Lite defragmentation,NTI Backup Now, StressTest, and Symantec Security Check
    Packaged Quantity    10
    Power Supply Support    ATX 12V
    Processor Socket    Socket T
    Processor Support    Pentium 4
    Pentium 4 (Extreme Edition)
    Processor Technology    Hyper-Threading Technology
    Product Name    D925XECV2 Desktop Board
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/150
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC880
    Standard Warranty    3 Year Limited
    Temperature    -40 ?C to 70 ?C Non-operating
    0 ?C to 55 ?C Operating
    Total Processor Support    1
    Voltage Requirements    12V DC
