Home > Categories > Mainboard - Intel Chipset > AOPEN > Product (171017)

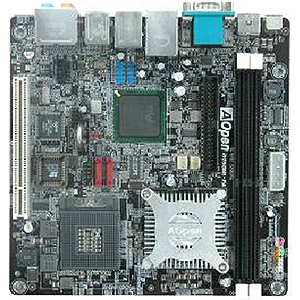

I915GMT-FSA (ROHS)

Our Price:
$255.42 CAD
In Stock
Usually ships in 1 to 2 business days.
Shipping Weight: 3.65 lbs
SKU #: (171017)
Mft. Part #: 91.8ET10.I9A0
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information

Chipset:

  • Northbridge: Intel 915GM
  • Southbridge: Intel ICH6-M
  • Software & Utility:

  • EzWinFlash utility
  • EzInstall utility
  • Acrobat Reader
  • AOconfig utility
  • WinDMI utility

  • Audio Channels    7.1
    Back Panel Interfaces    2 x mini-DIN
    1 x HD-15 VGA
    4 x Type A USB 2.0 USB
    1 x S-Video
    1 x DB-9 RS-232 Serial
    1 x RJ-45 Network
    1 x Mini-phone Microphone
    1 x IEEE 1394 FireWire
    4 x Mini-phone Audio Line Out
    1 x Mini-phone Audio Line In
    Brand Name    AOpen
    Chipset Manufacturer    Intel
    Chipset Model    915GM
    Dimensions    17cm Width x 17cm Depth
    Expansion Slots    1 x PCI
    Floppy Controller    Yes
    Front Panel Interfaces    1 x HDD LED
    1 x Reset Switch
    1 x On/Off Switch
    1 x Power LED
    1 x Audio Header
    2 x USB Header
    1 x COM2
    1 x FireWire Header
    1 x S/PDIF In/Out
    1 x CD-in/Aux-in Connector
    Front Side Bus    533MHz
    Gigabit Ethernet    Yes
    Graphics Controller Manufacturer    Intel
    Graphics Controller Model    GMA 900
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    AOpen, Inc
    Manufacturer Part Number    91.8ET10.I9A0
    Manufacturer Website Address    www.aopen.com
    Marketing Information

    The i915GMt-FSA Desktop Board is small, but dont mistake its humble, it performance well actually. With Intel 915 chipset, it supports Socket 479 mobile CPU, 533 MHz FSB, DDRII 533/400 memory, and SATA by AOpen MoDT (Mobile on Desktop) technology, enough for any Internet and office tasks. For entertainment, it integrated Intel 915 GM display and support S-Video output for TVs. If you need more multimedia functions, you can install extra graphic card to its PCI slot. For audio part, Realtek ALC880 (7.1 Channel) with SPDIF In/out is on board provides you good sound effects.

    For easy connecting and transferring between digital devices such as digital camera, MP3 player, PDA, DV and external storages; i915GMt-FSA equips eight USB 2.0 and two IEEE1394 ports able to link many devices at the same time. You can build a compact and powerful system with AOpen i915GMt-FSA in the simplest way.


    Maximum Memory    2GB
    Memory Standard    DDR2-400/PC2-3200
    DDR2-533/PC2-4200
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    2
    Number of SATA Interfaces    2
    Package Contents

  • i915GMt-FSA Desktop Board
  • Adapter
  • 1 x 4-pin power cable
  • Bonus Pack CD disc
  • Floppy Disk cable
  • Easy Installation Guide
  • Serial ATA cable
  • 80-wire IDE cable
  • Back Panel I/O Shield
  • Serial ATA Power cable
  • CPU Cooler

  • Processor Socket    Socket 479
    Processor Support    Pentium M
    Celeron M
    Product Model    i915GMt-FSA
    Product Name    i915GMt-FSA Desktop Board
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/150
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC880
    Total Processor Support    1
