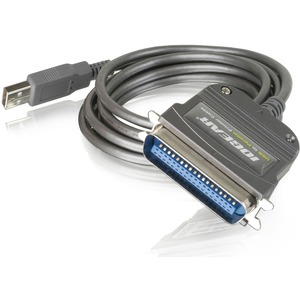

IEEE 1284 Printer Adapter - 4 pin USB Type A (M) - 36 pin Centronics (M) - 6 ft

Our Price:
$22.97 CAD
Special Order
Shipping Weight: 0.52 lbs
SKU #: (207244)
Mft. Part #: GUC1284B
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information
  • Allows USB Only Computers to send Print Jobs to Parallel Printers
  • Fully Compliant with USB 1.1 and IEEE 1284 Specifications
  • Bi-directional Data Transfer over Parallel Port Allows High-speed Printing
  • Low Power Consumption, No Need for External Power Adapter
  • Plug-n-Play

  • Brand Name    IOGEAR
    Cable Length    1.83m
    Compatibility
  • Printer

  • Connector Details    1 x 4-pin Type A Male USB USB
    1 x 36-pin Centronics Male IEEE 1284 Parallel
    Type A
    Centronics
    Data Transfer Rate    Up to 12Mbps
    Dimensions    1.93cm Height x 4.29cm Width x 5.28cm Depth
    Humidity    20 to 80% Non-condensing Relative Humidity Operating
    Manufacturer    IOGEAR, Inc
    Manufacturer Part Number    GUC1284B
    Manufacturer Website Address    www.iogear.com
    Marketing Information

    IOGEARs USB to IEEE-1284 Bi-directional Printer Cable allows you to send print job from an USB-only computer to parallel printers. This cable is fully compliant with USB 1.1 and IEEE 1284 1994 specifications. It features bi-directional data transfer at the parallel port to assure high-speed printing and a maximum data transfer rate of 12 Mbps. It is easy to install, hot swappable, and does not require any external power adapters.


    Material    Plastic
    Number of Connectors    2
    Package Contents
  • GUC 1284 USB to parallel adapter cable
  • Warranty card
  • Instruction sheet

  • Platform Support    PC
    Product Name    USB to Parallel Adapter
    Shipping Dimensions    21.59cm Height x 6.73cm Width x 15.24cm Depth
    Shipping Weight    0.2 kg
    Standard Warranty    3 Year Limited
    System Requirements    PC:
  • Windows 98, 98SE,2000, ME, XP
  • Available USB port

  • Temperature    20
    -17.78
    Weight    0.1 kg
