Print server - parallel / serial - EN, Fast EN, EtherTalk - 10Base-T, 100Base-TX

Our Price:
$249.68 CAD
Special Order
Shipping Weight: 2 lbs
SKU #: (213464)
Mft. Part #: 0129-004-02
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
HardwareWiki.org Info

Customer Reviews

Specifications
Additional Information

  • Logical printer ports can be programmed to perform auto ASCII to PostScript conversion, string before and after job, string substitution, alternative output and character set conversion
  • Ethernet: Use of IEEE802.2, IEEE802.3, SNAP and Ethernet II frame types simultaneously
  • Fast Ethernet: Supports NWay that provides auto-detection of network speed. Use of IEEE802.2, IEEE802.3, SNAP and Ethernet II frame types simultaneously, full duplex
  • One serial port, RS-232, 9-pin DSUB connector. XON/XOFF or RTS/CTS
  • Data rates up to 115,200 baud
  • Parallel Ports:Sustained throughput over 1 MB/sec using NetWare. Bi-directional support for Apple EtherTalk, Reverse Telnet, PROS. ECP support


    		•
    Brand Name    Axis
    Certifications & Standards    IEEE:

  • IEEE 802.2
  • IEEE 802.3
  • IEEE 1284

    • Approvals:

  • EMC CE
  • EN 55022/1994
  • EN50082-1/1997
  • FCC Class A

    • Safety:

  • EN 60950
  • approved power supplies for all countries


    		•
    Compatibility    PC:

  • Windows NT ver. 3.5 and above
  • Windows for Workgroups
  • Windows 95
  • Windows 98
  • Windows 2000

    • Microsoft LAN Manager:

  • LAN Manager 2.0c and above, running under OS/2 ver. 1.3 and above

    • Novell NetWare:

  • NetWare 3.11, 3.12, 4.10, 4.11, 5 and above.

    • IBM LAN Server:

  • LAN Server 1.3 and above, running under OS/2 ver 1.3 and above including OS/2 Warp, OS/2 Warp Connect

    • LANtastic:

  • LANtastic 7.0, from any of the supported Windows clients defined above

    • Additional Systems:

  • All computers supporting the TCP/IP suite of protocols including:

    • BSD systems:

  • BSD 4.2, 4.3, 4.4, SunOS4 (SOLARIS 1.x), DEC Ultrix etc.

    • System V systems:

  • R3, R4, AT&T. Interactive,SCO, SUNOS5 (Solaris 2.x), HP-UX, Silicon Graphics IRIX, DEC Alpha OSF/1, IBM AIX, BULL (BOS, AIX), Linux

    • Other systems:

  • IBM (MVS, VM, VSE, OS/400),DEC VMS, guidelines for other systems

    • WWW:

  • Netscape 3.0 or higher
  • MS Internet Explorer 3.0 or higher

    • Supported Printers:

  • Parallel printers from e.g. Canon, Epson, HP, Ricoh, Minolta, Lexmark and Xerox
  • AXIS 5600+ supports serial printers

    • Supported Languages:

  • English
  • German
  • French
  • Spanish


    		•
    Connectivity Media    Category 5 Twisted Pair 10/100Base-TX
    Data Transfer Rate    10Mbps Ethernet
    100Mbps Fast Ethernet Full-duplex
    8Mbps Parallel
    10Mbps
    100Mbps
    8Mbps
    Dimensions    2.79cm Height x 16cm Width x 12.95cm Depth
    Form Factor    External
    Humidity    10 to 95% Non-condensing
    Input Current    800 mA
    Input Voltage    12 V AC
    Interface Type    10/100Base-TX
    Interfaces/Ports    1 x RJ-45 10/100Base-TX Network Auto-negotiating
    2 x DB-25 Parallel Bi-directional Printer
    1 x DB-9 RS-232 Serial Printer
    Management

  • SNMP-MIB II compliant (over UDP/IP and IPX), private enterprise MIB included
  • Print server/job/printer status presentation and management via NWAdmin/PCONSOLE
  • AXIS ThinWizard for monitoring, configurationand firmware upgrading
  • DHCP
  • Telnet


    		•
    Manufacturer    Axis Communications
    Manufacturer Part Number    0129-004-02
    Manufacturer Website Address    www.axis.com
    Marketing Information

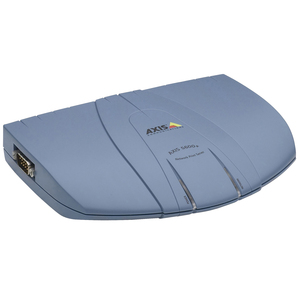

    The AXIS 5600+ network print server is designed to further simplify the printing process, increase network flexibility and maximize the full potential of your printer. Enhanced with Axis' latest software, AXIS 5600+ offers users many new benefits that ensure simple and reliable administration. One of the new features is automatic IP setting (AutoIP) which simplifies installation. When the printer requires attention - for example, new toner or a paper refill the print server will automatically notify a chosen administrator by e-mail.
    Memory    2MB RAM
    Memory Details    1MB Flash Memory Installed
    Package Contents

  • One Print Server AXIS 5600+
  • AXIS Product CD, revision 2.0 or higher
  • The AXIS 5600+ Quick Installation Guide
  • Power Supply


    		•
    Packaged Quantity    1
    Power Consumption    4.8 W Maximum
    Processor    100MHz 32-bit RISC
    Product Name    5600+ Network Print Server
    Product Type    Print Server
    Protocols    NetBEUI
    ARP
    SAP
    ICMP
    RARP
    NCP
    IPP
    NDPS
    LIP
    FTP
    BootP
    NBP
    RIP
    RTMP
    IGMP
    TCP/IP
    DDNS
    SPX
    ATP
    DDP
    PAP
    NLSP
    Zip
    SLP
    WINS
    IPX/SPX
    Shipping Dimensions    10.8cm Height x 19.05cm Width x 24.76cm Depth
    Shipping Weight    0.83 kg
    Standard Warranty    1 Year Limited
    Status Indicators

  • 2 LED indicators:Power and Network
  • Test button for information printouts


    		•
    Temperature    5 ?C to 40 ?C
    Weight    0.29 kg
