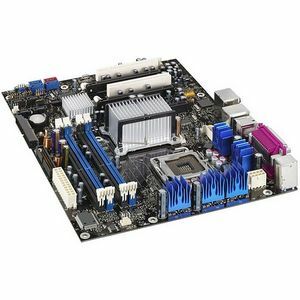

Intel D975XBX2 ATX LGA775 Conroe 975X DDR2 PCI-E16 SATA RAID Sound GBLAN 1394 Motherboard

Our Price:
$207.92 CAD
Special Order
Shipping Weight: 5 lbs
SKU #: (217266)
Mft. Part #: BOXD975XBX2KR
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
HardwareWiki.org Info

Customer Reviews

Specifications
Additional Information

BIOS:

  • Intel BIOS resident in the SPI Flash device
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
  • Watchdog timer providing automatic recovery after two failed power-on self-tests (POSTs)

    • Hardware Monitor Subsystem:

  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan headers
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control
  • Support for Product Environmental Control Interface (PECI)

    		•
    Audio Channels    7.1
    Back Panel Interfaces    2 x mini-DIN
    4 x Type A USB 2.0 USB
    1 x DB-9 RS-232 Serial
    1 x Toslink S/PDIF Out
    1 x S/PDIF Out
    1 x DB-25 IEEE 1284 Parallel
    1 x RJ-45 Network
    1 x Mini-phone Microphone
    1 x IEEE 1394a FireWire
    3 x Mini-phone Audio Line Out
    1 x Mini-phone Audio Line In
    Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    975X Express
    Dimensions    30.48cm Width x 24.38cm Depth
    Expansion Slots    3 x PCI Express x16
    2 x PCI
    Floppy Controller    Yes
    Front Panel Interfaces    1 x Power LED
    1 x HDD LED
    1 x On/Off Switch
    1 x Reset Switch
    1 x Speaker
    1 x Chassis Intrusion Switch
    2 x USB Header
    Front Side Bus    800MHz
    1066MHz
    Gigabit Ethernet    Yes
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BOXD975XBX2KR
    Manufacturer Website Address    www.intel.com
    Marketing Information

    If you've got the POWER, the SPEED, the PERFORMANCE on your team, then you've got the WINNING EDGE. With the Intel Desktop Board D975XBX2, supporting the Intel Core 2 Extreme processor, your desktop PC will become the ultimate weapon. You will scream through the latest games, level after level. Add the world's best gaming processor and the D975XBX2 to your game strategy, a combination so BAD that it's GOOD. The Intel Desktop Board D975XBX2 is Microsoft Windows Vista Premium Ready. The Intel 975X Express Chipset fully supports the visually stunning Windows Aero user interface with amazing transition effects and realistic animations.
    Maximum Memory    8GB
    Memory Standard    DDR2-533/PC2-4200
    DDR2-667/PC2-5300
    DDR2-800/PC2-6400
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    4
    Package Contents
  • 1 x D975XBX2 Desktop Board
  • 1 x Cable, ATA 66/100 IDE
  • 1 x Cable, Floppy
  • 4 x Cable, Serial ATA
  • 1 x Intel Express Installer driver CD-ROM
  • 1 x Intel Express Installer software DVD-ROM
  • 1 x Configuration Label
  • 1 x I/O Shield
  • 1 x Rear Panel USB 2.0 adapter
  • 1 x 2x2 to 2x4 power supply cable adapter
  • 1 x Intel Matrix Storage RAID driver diskette
  • 1 x Marvell SATA Controller RAID driver diskette
  • 1 x Back Panel Audio Covers
  • 1 x Quick Reference Poster
  • 1 x Integration Guide Poster
  • 1 x Printed Product Guide

    		•
    Package Type    Retail
    Packaged Quantity    1
    Packing    Box
    Processor Socket    Socket T
    Processor Support    Core 2 Extreme
    Core 2 Duo
    Pentium (Extreme Edition)
    Pentium 4 (Extreme Edition)
    Pentium D
    Pentium 4
    Processor Technology    Hyper-Threading Technology
    Product Model    D975XBX2
    Product Name    D975XBX2 Desktop Board
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    SigmaTel
    Sound Controller Model    9274D
    Standard Warranty    3 Year Limited
    Total Processor Support    1
