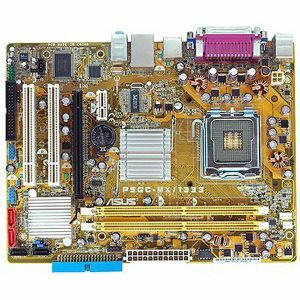

Asus P5GC-MX 945GC Matx LGA775 Conroe DDR2 1PCI-E16 1PCI-E 2PCI Sata Video Sound Lan Motherboard

Our Price:
$65.52 CAD
In Stock
Usually ships in 1 to 2 business days.
Shipping Weight: 2.5 lbs
SKU #: (218606)
Mft. Part #: P5GC-MX/1333
Qty.
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information

  • Dual Channel memory supported
  • 1333 MHz FSB supported via overclocking

    Chipset:

  • Northbridge: Intel 945GC(A2)
  • Southbridge: Intel ICH7
  • Special Features:

  • ASUS CrashFree BIOS 2
  • ASUS Q-Fan
  • ASUS EZ Flash
  • ASUS MyLogo
  • BIOS Features:

  • 4 Mb Flash ROM
  • AMI BIOS
  • PnP
  • DMI2.0
  • WfM2.0
  • SM BIOS 2.3
  • Manageability:

  • WfM 2.0
  • DMI 2.0
  • WOL by PME
  • WOR by PME
  • Supported Operating Systems:

  • Windows Windows Vista
  • Windows Windows XP
  • Windows Windows 2000
  • Support CD Contents:

  • Drivers
  • ASUS PC Probe II
  • ASUS Update
  • Anti-virus software

  • Audio Channels    5.1
    Back Panel Interfaces    2 x mini-DIN
    1 x HD-15 VGA
    1 x DB-9 RS-232 Serial
    1 x DB-25 IEEE 1284 Parallel
    1 x RJ-45 Network
    4 x Type A USB 2.0 USB
    1 x Mini-phone Audio Line In
    1 x Mini-phone Audio Line Out
    1 x Mini-phone Microphone
    Brand Name    ASUS
    Chipset Manufacturer    Intel
    Chipset Model    945GC(A2)
    Dimensions    9.6" Width x 7.4" Depth
    Expansion Slots    1 x PCI Express x16
    1 x PCI Express x1
    2 x PCI
    Fast Ethernet    Yes
    Floppy Controller    Yes
    Form Factor    µATX
    Front Panel Interfaces    1 x HDD LED
    1 x Power LED
    1 x Reset Switch
    1 x On/Off Switch
    2 x USB Header
    1 x S/PDIF Out
    1 x Audio Header
    1 x Chassis Intrusion Switch
    1 x CD-in/Aux-in Connector
    Front Side Bus    1066MHz
    800MHz
    533MHz
    Graphics Controller Manufacturer    Intel
    Graphics Controller Model    Graphics Media Accelerator 950
    Green Compliance    Yes
    Green Compliance Certificate/Authority    RoHS
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    ASUS Computer International
    Manufacturer Part Number    P5GC-MX/1333
    Manufacturer Website Address    usa.asus.com
    Marketing Information

    P5GC-MX/1333 Desktop Board with Intel 945GC chipset inside supports Intel dual-core CPU and features 1333MHz FSB(O.C.), PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5GC-MX/1333 is the most affordable all in one solution platform for Intel Core 2 Processor with Intel 945GC chipset inside.


    Maximum Memory    4GB
    Memory Standard    DDR2-667/PC2-5300
    DDR2-533/PC2-4200
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    2
    Number of SATA Interfaces    4
    Package Contents

  • P5GC-MX/1333 Desktop Board
  • 1 x UltraDMA 100/66 cable
  • 1 x Floppy disk drive cable
  • 1 x SATA cable
  • 1 x SATA Power cable
  • I/O Shield
  • User manual

  • Processor Socket    Socket T
    Processor Support    Celeron
    Celeron-D
    Celeron Dual-Core
    Core 2 Duo
    Core 2 Extreme
    Pentium 4
    Pentium D
    Pentium Dual-Core
    Processor Technology    Enhanced SpeedStep Technology
    Product Model    P5GC-MX/1333
    Product Name    P5GC-MX/1333 Desktop Board
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC883
    Standard Warranty    3 Year Limited
