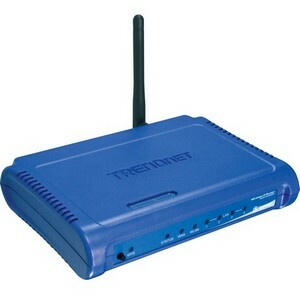

Trendnet TEW-432BRP 54MBPS 802.11B/G Wireless Router W/ 4PORT Switch

Our Price:
$36.51 CAD
In Stock
Usually ships in 1 to 2 business days.
Shipping Weight: 2 lbs
SKU #: (219081)
Mft. Part #: TEW-432BRP
Qty.
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
Customer Reviews

Specifications
Access Method    CSMA/CA with ACK
Additional Information
  • Supports Static and Dynamic Routing
  • Traffic Control with Virtual Server, Virtual PC mapping and DMZ
  • Supports MAC Address, Protocol Filters and UPnP (Universal Plug & Play)
  • DHCP Server Feature Allocates up to 253 Client IP Addresses
  • Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE or PPTP connection types

    • Receiving Sensitivity:

  • 11Mbps 10 - 5 BER @ -85 dBm (typical)
  • 54Mbps 10 - 5 BER @ -70 dBm (typical)


    		•
    Antenna    1 x 2dBi Dipole Antenna Detachable with Reversed SMA Connector
    Antenna Range    30 m to 50 m Indoors
    50 m to 200 m Outdoors
    Brand Name    TRENDnet
    Certifications & Standards
  • FCC
  • CE
  • Wi-Fi Compliant

    IEEE Standards:

  • IEEE 802.11b (11Mbps)
  • IEEE 802.11g (54Mbps)
  • IEEE 802.3 (10Base-T)
  • IEEE 802.3u (100Base-TX)
  • IEEE 802.1x


    		•
    Channels    11 USA
    13 Europe
    Compatibility

    Compliant with Windows 95/98/NT/2000/XP, Linux and Mac OS
    Connectivity Media    10/100Base-TX Twisted Pair
    Data Transfer Rate    10Mbps Ethernet
    100Mbps Fast Ethernet
    Dimensions    3.5cm Height x 11.5cm Width x 14.7cm Length
    Frequency Band/Bandwidth    2.41 GHz to 2.48 GHz IEEE 802.11b/g ISM Band
    Humidity    95% Maximum Non-condensing
    Input Current    2.5 A
    Input Voltage    5 V DC Power Supply
    Interfaces/Ports    4 x RJ-45 Auto MDI/MDI-X LAN
    1 x RJ-45 Auto MDI/MDI-X WAN
    Management
  • Easy Management via Web Browser (HTTP) and Remote Management
  • Flash Memory for Firmware Upgrade, Save/Restore Settings, and Traffic Log

    		•
    Manufacturer    TRENDnet
    Manufacturer Part Number    TEW-432BRP
    Manufacturer Website Address    www.trendnet.com
    Marketing Information

    The 54Mbps Wireless G Router offers a complete wireless solution that allows you to share files, an Internet connection, or network resource while protecting your network using enhanced security features. Simply plug your workstations and your broadband modem into the Wireless G router, and configure your broadband connection using its built-in Web Interface. Use the Virtual Server feature to configure any workstation as a Web Server or FTP server easily, allowing users to view files from the Internet.
    Modulation
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM

    		•
    Number of Ports    4
    1
    Package Contents
  • TEW-432BRP 54Mbps Wireless Firewall Router
  • Multi-Language QIG
  • CD (User's Guide)
  • Power Adapter (5V, 2.5A)

    		•
    Power Supply    External
    Product Name    TEW-432BRP 54Mbps Wireless Firewall Router
    Product Type    Wireless Security Router
    Protocols    TCP/IP
    PPPoE
    PPTP
    FTP
    DHCP
    HTTP
    TKIP
    Receiver Sensitivity    -85 dBm Typical @ 11Mbps IEEE 802.11b
    -70 dBm Typical @ 54Mbps IEEE 802.11g
    Security Features
  • Password Protection
  • Supports MAC Address, IP, URL, Protocol Filters and Domain Blocking
  • Provides Additional Security with SPI / NAT firewall and Attack Alert via emails
  • Setting firewall Rules to limit Internet Access or block malicious intruders from accessing your network
    		•
    Standard Warranty    3 Year
    Status Indicators
  • Power
  • System
  • WLAN: ACT
  • WAN: Link, ACT & Speed
  • LAN: Link, ACT & Speed

    		•
    Temperature    0 ?C to 40 ?C Operating
    -10 ?C to 70 ?C Storage
    Transmission Speed    54Mbps
    Transmission Speed Details    54Mbps Auto-fallback IEEE 802.11g
    48Mbps Auto-fallback IEEE 802.11g
    36Mbps Auto-fallback IEEE 802.11g
    24Mbps Auto-fallback IEEE 802.11g
    18Mbps Auto-fallback IEEE 802.11g
    12Mbps Auto-fallback IEEE 802.11g
    9Mbps Auto-fallback IEEE 802.11g
    6Mbps IEEE 802.11g
    11Mbps Auto-fallback IEEE 802.11b
    5.5Mbps Auto-fallback IEEE 802.11b
    2Mbps Auto-fallback IEEE 802.11b
    1Mbps IEEE 802.11b
    Transmit Power    13 dBm Typical
    Weight    226 g
    Wireless Security
  • 64/128-bit WEP
  • 802.1x/WPA, WPA-PSK
  • TKIP/AES for Advance Security
  • Provides Additional Security of Enable/Disable SSID
    		•
    Wireless Technology    IEEE 802.11b/g
    Wireless Transmission Speed    54Mbps
