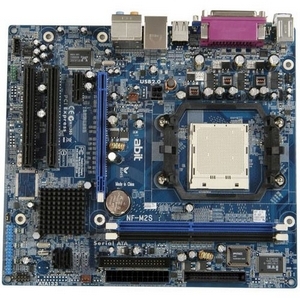

Abit NF-M2S mATX AM2 GEFORCE6100/NF405 1PCI-E16 1PCI-E1 2PCI SATA2 Video Sound GBLAN Motherboard

Our Price:
$59.95 CAD
Special Order
Shipping Weight: 5 lbs
SKU #: (219355)
Mft. Part #: NF-M2S
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information

Compliant Standard: RoHS


Back Panel Interfaces    2 x mini-DIN
1 x HD-15 VGA
4 x Type A USB 2.0 USB
1 x DB-9 RS-232 Serial
1 x DB-25 IEEE 1284 Parallel
1 x RJ-45 Network
1 x Mini-phone Microphone
4 x Mini-phone Audio Line Out
1 x Mini-phone Audio Line In
Brand Name    Abit
Chipset Manufacturer    nVIDIA
Chipset Model    GeForce 6100
Dimensions    9.61" Width x 8.66" Depth
Expansion Slots    1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Floppy Controller    Yes
Front Panel Interfaces    1 x Power LED
1 x HDD LED
1 x On/Off Switch
1 x Reset Switch
1 x Speaker
1 x Audio Header
2 x USB Header
IDE Controller    Yes
IDE Standard    Ultra ATA/133 (ATA-7)
Manufacturer    Abit Computer Corporation
Manufacturer Part Number    NF-M2S
Manufacturer Website Address    www.abit-usa.com
Maximum Memory    4GB
Memory Standard    DDR2-533/PC2-4200
DDR2-667/PC2-5300
DDR2-800/PC2-6400
Memory Technology    DDR2 SDRAM
Number of IDE Interfaces    1
Number of Memory Slots    2
Number of SATA Interfaces    2
Processor Socket    Socket AM2
Processor Support    Athlon 64 X2
Athlon 64 FX
Athlon 64
Sempron
Processor Technology    HyperTransport Technology
Product Model    NF-M2S
Product Name    NF-M2S Desktop Board
Product Type    Desktop Board
SATA Controller    Yes
SATA Standard    Serial ATA/300
Standard Warranty    3 Year Limited
Total Processor Support    1
