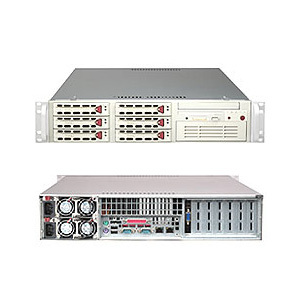

SUPERMICRO SSERVER 6023P8R 2U E7501 533FSB U320 REDUN PWR W/ FD & CDROM

Our Price:
$2,129.29 CAD
In Stock
Usually ships in 1 to 2 business days.
Shipping Weight: 56.4 lbs
SKU #: (220924)
Mft. Part #: SYS-6023-P8R
Qty.
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
HardwareWiki.org Info

Customer Reviews

Specifications
Additional Information

Processor:

  • Dual mPGA604 ZIF Sockets
  • Supports up to two Intel Xeon processor(s) with 1MB of integrated Advanced Transfer Cache up to 3.20GHz
  • 533MHz/400MHz system bus

    • Memory:

  • Memory must be populated in pairs
  • Memory Type DDR266/200,72-bit SDRAM

    • Input / Output:

  • 1x VXB (Virtual Extended Bus) slot
  • Dual EIDE channels support up to four UDMA IDE devices
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
  • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

    • BIOS Type:

  • 4Mb Flash EEPROM with Phoenix BIOS

    • PC Health Monitoring:

  • CPU:
    • Monitors for CPU Cores, +1.8V, +3.3V, +5,
    Brand Name    Supermicro
    Chipset Manufacturer    Intel
    Chipset Model    E7501
    Depth    653.0 mm
    Ethernet Technology    Gigabit Ethernet
    Graphics Controller Interface    PCI
    Graphics Controller Manufacturer    ATI
    Graphics Controller Model    RAGE XL
    Graphics Memory Capacity    8 MB
    Height    89.0 mm
    Input Voltage    110 V AC
    220 V AC
    Manufacturer    Supermicro Computer, Inc
    Manufacturer Part Number    SYS-6023-P8R
    Manufacturer Website Address    www.supermicro.com
    Marketing Information

    Achieving new levels of computing performance, Supermicro's 2U Xeon servers offer customers high compatibility and an advanced system architecture ideal for a multi-processing environment. Redundant components and exceptional cooling design provide customers with maximum system uptime.
    Maximum Memory    16 GB
    Memory Technology    DDR SDRAM
    Network (RJ-45)    Yes
    Number of External 5.25" Bays    1
    Number of PCI-X Slots    8
    Number of Processors Supported    2
    Number of Total Expansion Bays    7
    Number of Total Expansion Slots    8
    Optical Drive Type    CD-Reader
    Optical Media Supported    CD-ROM
    Package Contents
  • 1 x SuperServer 6023P-8R
  • 1 x Super X5DP8-G2 Motherboard
  • 1 x 2U SC822R-400LP Chassis (beige)
  • 2 x SP402-2S Redundant 400W power supply module
  • 1 x 2U Power Supply Backplane for SP402-2S modules
  • 1 x Redundant power supply housing
  • 1 x Panasonic 3.5" 1.44MB Floppy Drive
  • 1 x Slim 24x TEAC CD-ROM Drive
  • 6 x 1" SCA drive tray
  • 1 x 2U SCSI Backplane with SAF-TE
  • 4 x 80mm blower fan
  • 1 x 2U Chassis Mounting Rails
  • 1 x 2U 7-slots Low-Profile Rear I/O Panel
  • 1 x 9" Two-drop SCSI Ultra320 Cable
  • 2 x Xeon CPU Retention for 604/603-pin CPU
  • 2 x Xeon CPU Active Heatsink with Copper fin

    		•
    Processor Supported    Xeon
    Product Family    SuperServer
    Product Line    SuperServer
    Product Model    6023P-8R
    Product Name    SuperServer 6023P-8R Barebone System
    Product Type    Barebone System
    Rack Height    2U
    Software Included    No
    Total Number of USB Ports    2
    VGA    Yes
    Weight (Approximate)    22.23 kg
    Width    424.0 mm
