Home > Categories > Mainboard - AMD Chipset > ASUS > Product (221580)

AMD 790FX/ SB600 DDR2 1066/800/533

Our Price:
$303.23 CAD
Special Order
Shipping Weight: 2 lbs
SKU #: (221580)
Mft. Part #: 90-MIB211-G0AAY00Z
Add to My Bookmark
Features

Customer Reviews
Specifications

Additional Information
  • ROHS Compliant
  • 1 x WiFi-AP Solo antenna jack at the back
  • Dual Channel memory supported
  • DDR2 1066 is supported by AM2+ CPU only
  • Supports ATI CrossFireX

    Supported AM2+ Processors:

  • Phenom FX
  • Phenom X4
  • Phenom X2

    Chipset:

  • Northbridge: AMD 790FX
  • Southbridge: AMD SB600

    Wireless LAN:

  • 54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
  • Software Access Point mode
  • Station mode : Infrastruceure mode and Ad-Hoc mode

    ASUS AI Lifestyle Features:

  • ASUS Quiet Thermal Solution:
    • ASUS Fanless Design: Cool Mempipe solution
    • ASUS 8+2 Phase Power Design
    • ASUS AI Gear 2
    • ASUS AI Nap
    • ASUS Fanless Design: Heat-pipe solution
    • ASUS Fanless Design: Stack Cool 2
    • ASUS Q-Fan 2
  • ASUS Crystal Sound:
    • ASUS AI Audio2
    • ASUS Noise Filter
  • ASUS EZ DIY:
    • ASUS Q-Shield
    • ASUS Q-Connector
    • ASUS O.C. Profile
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 2
  • ASUS WiFi@Home:
    • ASUS WiFi-AP Solo

    Special Features:

  • Uses 100% All High-quality Conductive Polymer Capacitors!
  • ASUS MyLogo 2
  • Multi-language BIOS

    Overclocking Features:

  • Intelligent overclocking tools:
    • AI NOS (Non-delay Overclocking System)
    • AI Overclocking (Intelligent CPU Frequency Tuner)
    • ASUS AI Booster Utility
  • Precision Tweaker 2:
    • vCore: Adjustable CPU voltage at 0.0125V increment
    • vDIMM: 35-step DRAM voltage control
    • vChipset: 16-step Chipset voltage control
  • SFS (Stepless Frequency Selection)
    • FSB tuning from 200MHz up to 600MHz at 1MHz increment
    • Memory tuning from 533MHz up to 1066MHz
    • PCIe frequency tuning from 100MHz up to 150MHz at 1MHz increment
  • Overclocking Protection:
    • ASUS C.P.R. (CPU Parameter Recall)

    BIOS Features:

  • 8 Mb Flash ROM
  • AMI BIOS
  • PnP
  • DMI2.0
  • WfM2.0
  • SM BIOS 2.3
  • ACPI 2.0a
  • ASUS EZ Flash 2
  • ASUS CrashFree BIOS 3

    Support Disc Contents:

  • Drivers
  • ASUS PC Probe II
  • ASUS Update
  • ASUS AI Suite
  • ASUS WiFi-AP Solo Wizard
  • Anti-virus software

  • Audio Channels    7.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Asus
    Chipset Manufacturer    AMD
    Chipset Model    790FX
    Controller Type    Floppy Controller
    Serial ATA/300
    Ultra ATA/133 (ATA-7)
    Depth    9.6"
    Form Factor    ATX
    Gigabit Ethernet    Yes
    HyperTransport Speed    5200 MHz
    2000 MHz
    1600 MHz
    Manufacturer    ASUS Computer International
    Manufacturer Part Number    90-MIB211-G0AAY00Z
    Manufacturer Website Address    usa.asus.com
    Maximum Memory    8 GB
    Memory Standard    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    DDR2-533/PC2-4200
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of FireWire/i.LINK 400 Ports    1
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of PCI Express x16 Slots    4
    Number of PCI Slots    2
    Number of S/PDIF Out Ports    2
    Number of SATA Interfaces    6
    Number of Total Expansion Slots    6
    Number of USB 2.0 Ports    6
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard S/PDIF Header    Yes
    Package Contents

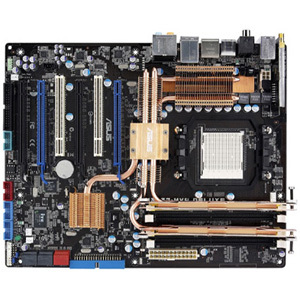

  • M3A32-MVP Deluxe/WiFi-AP Desktop Board
  • ASUS Cool Mempipe
  • ASUS CrossFire Bridge Cable
  • UltraDMA 133/100/66 cable
  • FDD cable
  • SATA cables
  • SATA power cables
  • Q-Shield
  • User manual
  • 1 x Multi-function module (IEEE 1394 + USB2.0)
  • 3 in 1 Q-connector
  • ASUS WiFi-AP Solo omni-directional antenna

  • Processor Socket    Socket AM2+ PGA-940
    Processor Supported    Athlon X2
    Athlon 64 X2
    Athlon 64 FX
    Athlon 64
    Sempron
    Processor Technology    HyperTransport Technology
    Product Model    M3A32-MVP Deluxe/WiFi-AP
    Product Name    M3A32-MVP Deluxe/WiFi-AP Desktop Motherboard
    Product Type    Desktop Motherboard
    S/PDIF    Yes
    Sound Controller Manufacturer    Analog Devices
    Sound Controller Model    AD1988
    Standard Warranty    3 Year Limited
    Total Number of FireWire/i.LINK Ports    1
    Total Number of Onboard FireWire/i.LINK Ports    1
    Total Number of Onboard USB Ports    2
    Total Number of PCI Express Slots    4
    Total Number of USB Ports    6
    Total Processor Supported    1
    Width    12.0"
