Home > Categories > Mainboard - VIA chipset > ASRock > Product (232235)

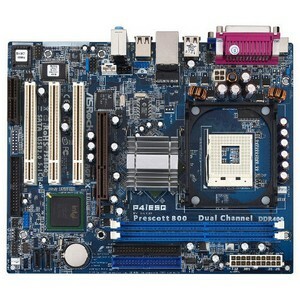

ASRock P4I65G S478 Intel 865G mATX DDR AGP 3PCI SATA Video Sound LAN Motherboard

Our Price:
$80.64 CAD
Special Order
Shipping Weight: 4 lbs
SKU #: (232235)
Mft. Part #: P4I65G
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information

Hybrid Booster:

  • CPU Frequency Stepless control
  • ASRock U-COP
  • Boot Failure Guard (B.F.G)

    BIOS:

  • 4Mb AMI BIOS
  • AMI Legal BIOS
  • Supports "Plug and Play"
  • ACPI 1.1 Compliance Wake Up Events
  • Supports jumperfree
  • SMBIOS 2.3.1 Support

    Support CD contents:

  • Drivers
  • Utilities
  • AntiVirus Software (Trial Version)

    Hardware Monitor:

  • CPU Temperature Sensing
  • Chassis Temperature Sensing
  • CPU Overheat Shutdown to Protect CPU Life
  • CPU Fan Tachometer
  • Chassis Fan Tachometer
  • Voltage Monitoring: +12V, +5V, +3.3V, Vcore


  • Audio Channels    5.1
    Back Panel Interfaces    2 x mini-DIN
    1 x DB-25 IEEE 1284 Parallel
    1 x HD-15 VGA
    6 x Type A USB 2.0 USB
    1 x RJ-45 Network
    1 x Mini-phone Microphone
    1 x Mini-phone Audio Line In
    1 x Mini-phone Audio Line Out
    Brand Name    ASRock
    Chipset Manufacturer    Intel
    Chipset Model    865G
    Dimensions    9.6" Width x 7.8" Depth
    Expansion Slots    3 x PCI
    1 x AGP 8x
    1 x AMR
    Fast Ethernet    Yes
    Floppy Controller    Yes
    Form Factor    µATX
    Front Panel Interfaces    1 x HDD LED
    1 x Power LED
    1 x Reset Switch
    1 x On/Off Switch
    2 x USB Header
    1 x Audio Header
    1 x IrDA
    1 x Speaker
    CD-in/Aux-in Connector
    1 x COM1
    Front Side Bus    800MHz
    533MHz
    400MHz
    Graphics Controller Manufacturer    Intel
    Graphics Controller Memory    96MB
    Graphics Controller Model    Graphics 2
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    ASRock, Inc
    Manufacturer Part Number    P4I65G
    Marketing Information

    P4I65G Desktop Board is a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.


    Maximum Memory    2GB
    Memory Standard    DDR400/PC3200
    DDR333/PC2700
    DDR266/PC2100
    Memory Technology    DDR SDRAM
    Number of IDE Interfaces    2
    Number of Memory Slots    2
    Number of SATA Interfaces    2
    Package Contents
  • P4I65G Desktop Board
  • Quick Installation Guide
  • Support CD1
  • x 80-conductor Ultra ATA 66/100 IDE Ribbon Cable
  • 1 x Ribbon Cable for a 3.5-in Floppy Drive
  • I/O Plus Shield
  • 1 x COM Port Bracket
  • Processor Socket    Socket 478
    Processor Support    Pentium 4
    Celeron-D
    Celeron
    Processor Technology    Hyper-Threading Technology
    Product Model    P4I65G
    Product Name    P4I65G Desktop Board
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/150
    Sound Controller Manufacturer    C-Media
    Sound Controller Model    9761A
    Total Processor Support    1

    Manufacturer's Warranty Contact Information

    1 year limited warranty.

    For technical Support see ASRock online technical support at ASRock.com.

    See warranty information at ASRock Warranty Policy
