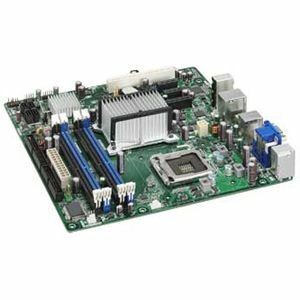

BLKDG35EC UATX G35 1333M 896208

Our Price:
$117.80 CAD
In Stock
Usually ships in 1 to 2 business days.
Shipping Weight: 0.1 lbs
SKU #: (245964)
Mft. Part #: BLKDG35EC
Qty.
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
64-bit Processing    Yes
Additional Information

Chipset:

  • Northbridge GMCH
  • Southbridge ICH8
  • BIOS:

  • Intel BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,and SMBIOS
  • Instantly Available PC Technology:

  • Support for PCI Local Bus Specification Revision 2.3
  • Support for PCI Express Revision 1.1
  • Suspend to RAM support
  • Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
  • Hardware Monitor Subsystem:

  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Three fan headers
  • Three fan sense inputs used to monitor fan activity

  • Audio Channels    5.1
    Back Panel Interfaces    2 x mini-DIN
    1 x IEEE 1394a FireWire
    1 x RJ-45 Network
    1 x HD-15 VGA
    1 x Mini-phone Audio Line In
    1 x Mini-phone Audio Line Out
    1 x Mini-phone Microphone
    1 x DVI-D
    6 x Type A USB 2.0 USB
    Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    G35 Express
    Dimensions    29.46cm Width x 24.38cm Depth
    Expansion Slots    1 x PCI Express x16
    2 x PCI Express x1
    1 x PCI
    Floppy Controller    Yes
    Form Factor    ATX
    Front Panel Interfaces    1 x Reset Switch
    1 x On/Off Switch
    1 x HDD LED
    1 x Power LED
    1 x FireWire Header
    2 x USB Header
    1 x Chassis Intrusion Switch
    1 x COM1
    1 x S/PDIF Out
    1 x Audio Header
    Front Side Bus    1333MHz
    1066MHz
    800MHz
    Gigabit Ethernet    Yes
    Graphics Controller Manufacturer    Intel
    Graphics Controller Model    GMA X3500
    Green Compliance    Yes
    Green Compliance Certificate/Authority    RoHS
    Energy Star
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BLKDG35EC
    Manufacturer Website Address    www.intel.com
    Marketing Information

    The Intel Desktop Board DG35EC Classic Series has been optimized to deliver new levels of performance and reliability for home and business users.


    Maximum Memory    8GB
    Memory Standard    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    Memory Technology    DDR2 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    4
    Package Contents
  • 10 X DG35EC Desktop Board
  • 10 X Cable, ATA 66/100 IDE
  • 10 X Cable, Floppy
  • 20 X Cable, Serial ATA
  • 10 X Configuration Label
  • 10 X CD, Express Installer
  • 10 X CD, Software
  • 10 X I/O Shield
  • 1 X Quick Reference Poster

  • Package Type    Bulk
    Packaged Quantity    10
    Processor Socket    Socket T
    Processor Support    Core 2 Quad
    Core 2 Duo
    Pentium Dual-Core
    Celeron Dual-Core
    Celeron
    Product Model    DG35EC
    Product Name    DG35EC Desktop Board
    Product Series    Classic
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC888S
    Total Processor Support    1
