Home > Categories > Mainboard - AMD Chipset > ASUS > Product (260243)

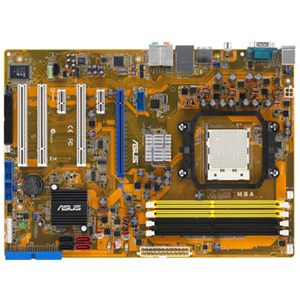

M3A, AMD770/SB600, DDR21066, SATAII, ATX

Our Price:
$112.68 CAD
Special Order
Shipping Weight: 0.5 lbs
SKU #: (260243)
Mft. Part #: 90-MIB2Q0-G0AAY0GZ
Add to My Bookmark
Features

Customer Reviews
Specifications

Additional Information
  • Natively support available for DDR2-1066MHz

    ASUS AI Lifestyle Features:

  • ASUS Quiet Thermal Solution:
    • ASUS AI Gear 2
    • ASUS AI Nap
    • ASUS Q-Fan 2
  • ASUS Crystal Sound:
    • ASUS Noise Filter
  • ASUS EZ DIY:
    • ASUS Q-Shield
    • ASUS Q-Connector
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 2

    Special Features:

  • ASUS MyLogo 2

    Overclocking Features:

  • Intelligent overclocking tools:
    • AI Overclocking (Intelligent CPU Frequency Tuner)
  • Precision Tweaker:
    • vCore: Adjustable CPU voltage at 0.025V increment
    • vDIMM: 8-step DRAM voltage control
    • vChipset: 4-step Chipset voltage control
  • SFS (Stepless Frequency Selection):
    • FSB tuning from 200MHz up to 600MHz at 1MHz increment
    • Memory tuning from 533MHz up to 1066MHz
    • PCIe frequency tuning from 100MHz up to 150MHz at 1MHz increment
  • Overclocking Protection:
    • ASUS C.P.R. (CPU Parameter Recall)

    BIOS:

  • 8 Mb Flash ROM
  • AMI BIOS
  • PnP
  • DMI2.0
  • WfM2.0
  • SM BIOS 2.3
  • ACPI 2.0a
  • ASUS EZ Flash 2
  • ASUS CrashFree BIOS 3

    Support Disc Contents:

  • Drivers
  • ASUS PC Probe II
  • ASUS Update
  • ASUS AI Gear 2
  • ASUS AI Nap
  • ASUS Q-Fan 2
  • Anti-virus software

  • Audio Channels    7.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Asus
    Chipset Manufacturer    AMD
    Chipset Model    770
    Controller Type    Floppy Controller
    Serial ATA/300
    Ultra ATA/133 (ATA-7)
    Depth    8.6"
    Form Factor    ATX
    Gigabit Ethernet    Yes
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    HyperTransport Speed    5200 MHz
    2000 MHz
    1600 MHz
    Manufacturer    ASUS Computer International
    Manufacturer Part Number    90-MIB2Q0-G0AAY0GZ
    Manufacturer Website Address    usa.asus.com
    Marketing Information

    M3A Desktop Board supports AMD Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus.


    Maximum Memory    8 GB
    Memory Standard    DDR2-800/PC2-6400
    DDR2-667/PC2-5300
    DDR2-533/PC2-4200
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of PCI Express x1 Slots    2
    Number of PCI Express x16 Slots    1
    Number of PCI Slots    3
    Number of S/PDIF Out Ports    1
    Number of SATA Interfaces    4
    Number of Total Expansion Slots    6
    Number of USB 2.0 Ports    4
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard S/PDIF Header    Yes
    Package Contents
  • M3A Desktop Board
  • UltraDMA 133/100/66 cable
  • FDD cable
  • SATA cables
  • SATA power cables
  • ASUS Q-Shield
  • User manual
  • 2 in 1 Q-connector
  • Support Disc

  • Processor Socket    Socket AM2+ PGA-940
    Processor Supported    Athlon 64
    Athlon 64 FX
    Athlon 64 X2
    Athlon X2
    Phenom
    Sempron
    Processor Technology    Cool'n'Quiet Technology
    Product Line    AI Lifestyle
    Product Model    M3A
    Product Name    M3A Desktop Motherboard
    Product Type    Desktop Motherboard
    S/PDIF    Yes
    Serial Port    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC883
    Standard Warranty    3 Year Limited
    Total Number of Onboard USB Ports    3
    Total Number of PCI Express Slots    3
    Total Number of USB Ports    4
    Total Processor Supported    1
    Width    12.0"
