Home > Categories > Mainboard - Other Chipset > INTEL > Product (261508)

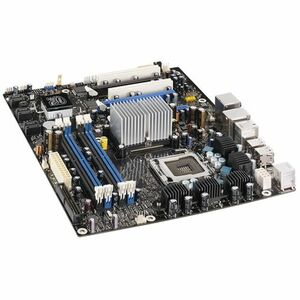

BLKDX48BT2 ATX LGA775 DDR3 1600MH 894958

Our Price:
$3,535.41 CAD
Special Order
Shipping Weight: 30 lbs
SKU #: (261508)
Mft. Part #: BLKDX48BT2
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
64-bit Processing    Yes
Additional Information

Chipset:

  • North Bridge: Intel 82X48
  • South Bridge: Intel ICH9R
  • BIOS:

  • Intel BIOS resident in the SPI Flash device
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
  • Instantly Available PC Technology:

  • Support for PCI Local Bus Specification Revision 2.2
  • Support for PCI Express Revision 1.0a
  • Suspend to RAM support
  • Wake on PCI, front panel, CIR, and USB ports
  • Hardware Monitor Subsystem:

  • Hardware monitoring and fan control ASIC
  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Four fan headers using PWM control
  • Three fan sense inputs used to monitor fan activity
  • Fan speed control using voltage control (3-pin fan headers front and rear)
  • Support for Product Environmental Control Interface (PECI)

  • Audio Channels    7.1
    Back Panel Interfaces    8 x Type A USB
    1 x IEEE 1394a FireWire
    1 x Toslink S/PDIF Out
    1 x Mini-phone Audio Line In
    3 x Mini-phone Audio Line Out
    1 x Mini-phone Microphone
    1 x RJ-45 Network
    2 x SATA
    Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    X48 Express
    Dimensions    30.48cm Width x 24.38cm Depth
    Expansion Slots    3 x PCI Express x16
    2 x PCI
    Floppy Controller    Yes
    Form Factor    ATX
    Front Panel Interfaces    1 x On/Off Switch
    1 x Reset Switch
    1 x HDD LED
    1 x Power LED
    1 x FireWire Header
    2 x USB Header
    1 x S/PDIF
    1 x Audio Header
    1 x Chassis Intrusion Switch
    Front Side Bus    1600MHz
    1333MHz
    1066MHz
    800MHz
    Gigabit Ethernet    Yes
    Green Compliance    Yes
    Green Compliance Certificate/Authority    RoHS
    Energy Star
    IDE Controller    Yes
    IDE Standard    Ultra ATA/100 (ATA-6)
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BLKDX48BT2
    Manufacturer Website Address    www.intel.com
    Marketing Information

    Pulse-pounding gaming and high powered multimedia experiences require the ultimate in performance from your processor and motherboard. Intel Desktop Board DX48BT2 is designed to unleash the power of Intel Core 2 Extreme processors. With support for 1600 MHz front side bus, fast DDR3 memory and overclocking, Intel Desktop Board DX48BT2 delivers the gaming performance you deserve.


    Maximum Memory    8GB
    Memory Standard    DDR3-1600/PC3-12800
    DDR3-1333/PC3-10600
    DDR3-1066/PC3-8500
    DDR3-800/PC3-6400
    Memory Technology    DDR3 SDRAM
    Number of IDE Interfaces    1
    Number of Memory Slots    4
    Number of SATA Interfaces    6
    Package Contents
  • 10 x DX48BT2 Desktop Board
  • 10 x Cable, ATA 66/100 IDE
  • 10 x Cable, Serial ATA
  • 10 x 2x2 to 2x4 power supply cable adapter
  • 10 x DVD, Express Installer Driver and Software DVD-ROM
  • 10 x Configuration Label
  • 10 x I/O Shield
  • 10 x Quick Reference Guide
  • 10 x ICH Heatsink Decorative Cover
  • 10 x MCH Heatsink Fan Mounting Bracket

  • Packaged Quantity    10
    Packing    Box
    Processor Socket    Socket T
    Processor Support    Core 2 Extreme
    Core 2 Quad
    Core 2 Duo
    Pentium Dual-Core
    Celeron Dual-Core
    Product Model    DX48BT2
    Product Name    DX48BT2 Desktop Board
    Product Type    Desktop Board
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    IDT
    Sound Controller Model    STAC9274D
    Total Processor Support    1
