Home > Categories > Mainboard - Other Chipset > INTEL > Product (298676)

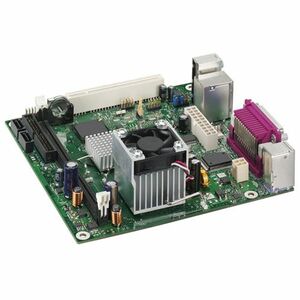

MOTHER BD LAD201GLY2TA UATX 895552

Our Price:
$69.82 CAD
Special Order
Shipping Weight: 2 lbs
SKU #: (298676)
Mft. Part #: LAD201GLY2TA
Add to My Bookmark
0 Customer Reviews | Specifications | Warranty Information | Sales Terms
HardwareWiki.org Info

Customer Reviews

Specifications
Additional Information
  • DDR 667 MHz validated to run at 533 MHz only

    • Chipset:

  • SiS662 Northbridge
  • SiS964 Southbridge

    • BIOS:

  • Intel BIOS resident in the 4-Mbit SPI Flash device

    • Hardware Monitor Subsystem:

  • Voltage sense to detect out of range power supply voltages
  • Thermal sense to detect out of range thermal values
  • Two fan connectors
  • One fan sense input used to monitor fan activity
  • Fan speed control

    		•
    Audio Channels    2.0
    Audio Line In    Yes
    Audio Line Out    Yes
    Brand Name    Intel
    Chipset Manufacturer    SiS
    Chipset Model    662
    Controller Type    Serial ATA/150
    Ultra ATA/100 (ATA-6)
    Depth    172.0 mm
    Fast Ethernet    Yes
    Form Factor    Micro ATX
    Front Side Bus    533 MHz
    Graphics Controller Manufacturer    SiS
    Graphics Controller Model    Mirage
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    Manufacturer    Intel Corporation
    Manufacturer Part Number    LAD201GLY2TA
    Manufacturer Website Address    www.intel.com
    Marketing Information

    The Intel Desktop Board D201GLY2A is an innovative solution for the sub-value market segment. With an Intel Celeron processor and graphics integrated on the board, this board enables easy system integration and helps you to achieve a lower system cost. This board has 10/100 LAN, support up to six Hi-Speed USB 2.0 ports and 2 SATA (1.5 GB/s), providing both connectivity and ease of use for your computing needs such as email and Internet access, instant messaging and Voice Over IP (VoIP).
    Maximum Memory    1 GB
    Memory Standard    DDR2-667/PC2-5300
    DDR2-533/PC2-4200
    DDR2-400/PC2-3200
    Memory Technology    DDR2 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of IDE Interfaces    1
    Number of Memory Slots    1
    Number of PCI Slots    1
    Number of SATA Interfaces    2
    Number of Total Expansion Slots    1
    Number of USB 2.0 Ports    2
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard Video    Yes
    Parallel Port    Yes
    Processor Socket    Socket PGA-479
    Processor Supported    Celeron
    Product Line    Essential
    Product Model    D201GLY2A
    Product Name    Essential D201GLY2A Desktop Motherboard
    Product Type    Desktop Motherboard
    Serial Port    Yes
    Sound Controller Manufacturer    ADI
    Sound Controller Model    AD1888
    Standard Warranty    1 Year Limited
    Total Number of Onboard USB Ports    2
    Total Number of USB Ports    2
    Total Processor Supported    1
    VGA    Yes
    Width    172.0 mm
