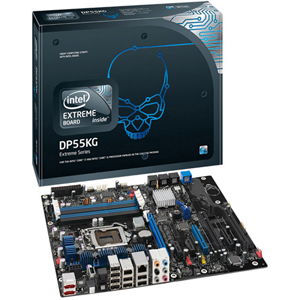

Intel DP55KG Extreme Series ATX LGA1156 P55 DDR3 2PCI-E16 2PCI-E1 SLI Crossfire Motherboard

Our Price:
$213.92 CAD
Special Order
Shipping Weight: 5 lbs
SKU #: (375346)
Mft. Part #: BOXDP55KG
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
64-bit Processing    Yes
Additional Information

System BIOS:

  • Intel BIOS Resident In the SPI Flash Device
  • Support for Advanced Configuration and Power Interface (ACPI)
  • Plug and Play
  • SMBIOS

  • Audio Channels    7.1
    Audio Line In    Yes
    Audio Line Out    Yes
    Bluetooth    Yes
    Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    P55 Express
    Controller Type    Serial ATA/300
    Depth    244.0 mm
    Form Factor    ATX
    Gigabit Ethernet    Yes
    Green Compliance Certificate/Authority    RoHS
    Energy Star
    Green Compliant    Yes
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BOXDP55KG
    Manufacturer Website Address    www.intel.com
    Marketing Information

    Extreme DP55KG Desktop Board Designed by enthusiasts for enthusiasts, delivers incredible performance. Enjoy great over-clocking hardware and software while boasting new features like Bluetooth technology. Support for ATI Crossfire and NVIDIA SLI technology rounds off the platform with amazing graphics performance.


    Maximum Memory    16 GB
    Memory Standard    DDR3-1600/PC3-12800
    DDR3-1333/PC3-10600
    DDR3-1066/PC3-8500
    Memory Technology    DDR3 SDRAM
    Microphone Port    Yes
    Multi GPU Supported    CrossFire
    SLI
    Network (RJ-45)    Yes
    Number of FireWire/i.LINK 400 Ports    1
    Number of Memory Slots    4
    Number of PCI Express x1 Slots    2
    Number of PCI Express x16 Slots    1
    Number of PCI Slots    2
    Number of S/PDIF In Ports    1
    Number of S/PDIF Out Ports    1
    Number of SATA Interfaces    8
    Number of Total Expansion Slots    5
    Number of USB 2.0 Ports    8
    Onboard LEDs Header    Yes
    Onboard S/PDIF Header    Yes
    Packing    Box
    Processor Socket    Socket H LGA-1156
    Processor Supported    Core i5
    Core i7
    Pentium
    Core i3
    Product Line    Extreme
    Product Model    DP55KG
    Product Name    Extreme DP55KG Desktop Motherboard
    Product Type    Desktop Motherboard
    RAID Levels    0
    1
    1+0
    RAID Supported    Yes
    S/PDIF    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC889
    Total Number of FireWire/i.LINK Ports    1
    Total Number of Onboard FireWire/i.LINK Ports    1
    Total Number of Onboard USB Ports    2
    Total Number of PCI Express Slots    3
    Total Number of USB Ports    8
    Total Processor Supported    1
    Width    305.0 mm
