Home > Categories > Server > INTEL > Product (431318)

CNTRY KIT SR2600URSATARNA MKT KIT 905745

Our Price:
$1,555.46 CAD
Special Order
Shipping Weight: 2 lbs
SKU #: (431318)
Mft. Part #: SR2600URSATARNA
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
Additional Information

QuickPath Technology:

  • QuickPath Interconnect supports up to 6.4 GT/s

  • Brand Name    Intel
    Chipset Manufacturer    Intel
    Chipset Model    5520
    Controller Type    Serial ATA/300
    Depth    705.0 mm
    Ethernet Technology    Gigabit Ethernet
    Form Factor    Rack-mountable
    Graphics Controller Model    ServerEngines LLC Pilot II
    Graphics Memory Capacity    64 MB
    Graphics Memory Technology    DDR2 SDRAM
    Green Compliance Certificate/Authority    RoHS
    WEEE
    80 Plus
    Energy Star
    Green Compliant    Yes
    Height    87.0 mm
    Manufacturer    Intel Corporation
    Manufacturer Part Number    SR2600URSATARNA
    Manufacturer Website Address    www.intel.com
    Marketing Information

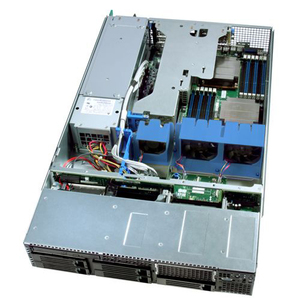

    For high-end data center applications, virtualization platforms, or as a video server, the Intel Server System SR2600URSATARNA Barebone System features three expansion slots, five 3.5" drive bays and non-redundant cooling, all in a 2U rack mount chassis.


    Maximum Power Supply Wattage    1.50 kW
    Memory Standard    DDR3-1333/PC3-10600
    Memory Technology    DDR3 SDRAM
    Network (RJ-45)    Yes
    Number of 3.5" Bays    5
    Number of External 5.25" Bays    1
    Number of Power Supplies Installed    2
    Number of Processors Supported    2
    Number of Total Expansion Bays    6
    Number of Total Memory Slots    12
    Number of USB 2.0 Ports    5
    Operating System Supported    Windows Server 2008
    Windows Server 2008 x64
    Windows Server 2003 Standard
    Windows Server 2003 Standard x64
    Windows Small Business Server 2003
    Windows Small Business Server 2003 x64
    SuSE Linux Enterprise Server 10 x64
    SuSE Linux Enterprise Server 10
    Red Hat Enterprise Linux 5.2 Update 3
    Package Contents
  • Server System SR2600URSATARNA Barebone System
  • 6 x Redundant and Hot-swap Fans
  • 5 x 3.5" Hot Swap HDD Carriers
  • Intel Server Chassis SR2600
  • Intel Server Board S5520UR
  • North American Power Cord
  • Standard Control Panel
  • Tape Drive Bay Filler
  • 1 x Active butterfly riser with 5 PCI Express 2.0 x8 wired slots
  • Passive (pass-through, no SAS controller) SATA Midplane
  • Backplane with proprietary cable-less connection to Midplane
  • Bridge Board
  • 7 x DIMM Blanks
  • 2 x Processor Heatsinks
  • 2 x Hot-swap and Redundant capable high-efficient 750W Power Supplies
  • 2 x Chassis front handles in the box (ears)

  • Processor Socket    Socket B LGA-1366
    Processor Supported    Xeon
    Product Model    SR2600URSATARNA
    Product Name    Server System SR2600URSATARNA Barebone System
    Product Type    Barebone System
    Rack Height    2U
    RAID Levels    0, 1, 1+0
    RAID Supported    Yes
    Standard Warranty    3 Year Limited
    Total Number of USB Ports    5
    VGA    Yes
    Width    430.0 mm
