Home > Categories > Bar Code Reader > UNITECH AMERICA > Product (451682)

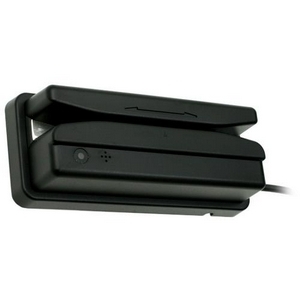

MS146 INFRARED BARCODE SLOT READER TTL

Our Price:
$61.42 CAD
Special Order
Shipping Weight: 1 lbs
SKU #: (451682)
Mft. Part #: MS146IAG
Add to My Bookmark
Customer Reviews
Specifications
Additional Information

6 ft Data Cable


Bar Code Symbology Supported
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code

  • Brand Name    Unitech
    Certifications & Standards
  • RoHS

  • Connectivity Technology    Cable
    Decode Rate (in/s)    29.50 in/s
    Depth    128.0 mm
    Depth of Field    0 nm - 2 mm@
    Green Compliance Certificate/Authority    RoHS
    Green Compliant    Yes
    Height    33.0 mm
    Host Interface    Multi-interface
    Humidity    0 to 95% Non-condensing
    Image Sensor    Photo Diode
    Input Voltage    5 V DC
    Light Source    LED
    Manufacturer    Unitech Electronics Co., Ltd
    Manufacturer Part Number    MS146IAG
    Manufacturer Website Address    www.ute.com
    Marketing Information

    The MS146 bar code slot readers is a flexible, cost effective solution when for a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any bar coded identification badge. Its sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Decoded versions are easy to use and configure.


    Maximum Scan Resolution    0.15 mm
    Platform Supported    PC
    Product Model    MS146
    Product Name    MS146 Bar Code Slot Reader
    Product Type    Swipe Bar Code Reader
    Standard Warranty    2 Year
    Temperature    32
    -4
    Weight (Approximate)    190.0 g
    Width    53.0 mm
