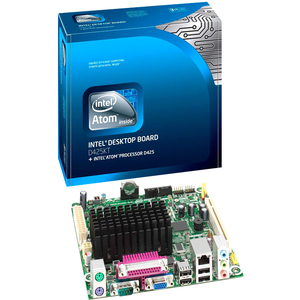

BLKD425KTE MINI-ITX DDR3-800 91042510PK

Our Price:
$712.06 CAD
Special Order
Shipping Weight: 20 lbs
SKU #: (519589)
Mft. Part #: BLKD425KTE
Add to My Bookmark
HardwareWiki.org Info

Customer Reviews
Specifications
64-bit Processing    Yes
Audio Channels    3.1
Audio Line In    Yes
Audio Line Out    Yes
Brand Name    Intel
Certifications & Standards
  • ErP
  • KCC
  • EN 60950-1
  • CSA/UL 60950-1
  • IEC 60950-1
  • FCC
  • CE
  • UL
  • VCCI
  • BSMI
  • C-tick
  • EMC:

  • FCC 47 CFR Part 15,Subpart B
  • ICES-003
  • EN55022
  • EN55024
  • EN55022
  • CISPR 22
  • CISPR 24
  • VCCI V-3, V-4
  • KN-22, KN-24
  • CNS 13438

  • Chipset Manufacturer    Intel
    Chipset Model    NM10 Express
    Controller Type    Serial ATA/300
    Depth    170.0 mm
    Form Factor    Mini ITX
    Gigabit Ethernet    Yes
    Graphics Controller Manufacturer    Intel
    Graphics Controller Model    GMA 3150
    Green Compliance Certificate/Authority    RoHS
    Energy Star
    China RoHS
    Green Compliant    Yes
    Integrated Processor Core    Dual-core (2 Core)
    Integrated Processor Manufacturer    Intel
    Integrated Processor Model    D425
    Integrated Processor Speed    1.80 GHz
    Integrated Processor Type    Atom
    Manufacturer    Intel Corporation
    Manufacturer Part Number    BLKD425KTE
    Manufacturer Website Address    www.intel.com
    Marketing Information

    Intel Desktop Board D425KT with integrated Intel Atom processor D425 and the Intel NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. The board also features 10/100 integrated LAN and USB Solid State Drive (SSD) keep-out-zone design an ideal combination for a diskless usage model.

    With breakthrough low-power silicon, the Intel Desktop Board D425KT can also be used with a passive thermal solution based on the recommended boundary conditions.

    While this desktop board is small in size, it delivers a powerful Internet experience for all audiences.


    Maximum Memory    4 GB
    Memory Form Factor    SoDIMM
    Memory Standard    DDR3-1333/PC3-10600
    DDR3-1066/PC3-8500
    DDR3-800/PC3-6400
    Memory Technology    DDR3 SDRAM
    Microphone Port    Yes
    Network (RJ-45)    Yes
    Number of Memory Slots    2
    Number of Network (RJ-45) Ports    1
    Number of Onboard USB 2.0 Ports    3
    Number of PCI Slots    1
    Number of PS/2 Ports    2
    Number of SATA Interfaces    2
    Number of Total Expansion Slots    1
    Number of USB 2.0 Ports    4
    Onboard Audio Header    Yes
    Onboard LEDs Header    Yes
    Onboard Serial Header    Yes
    Onboard Video    Yes
    Parallel Port    Yes
    Power Supply Supported    EPS12V
    Product Line    Innovation
    Product Model    D425KT
    Product Name    Innovation D425KT Desktop Motherboard
    Product Type    Desktop Motherboard
    PS/2 Port    Yes
    Serial Port    Yes
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC662
    Standard Warranty    3 Year
    Total Number of Onboard USB Ports    3
    Total Number of USB Ports    4
    VGA    Yes
    Width    170.0 mm
